Product Details:
Payment & Shipping Terms:
|
| Highlight: | pager call system,cellular pager |
||
|---|---|---|---|

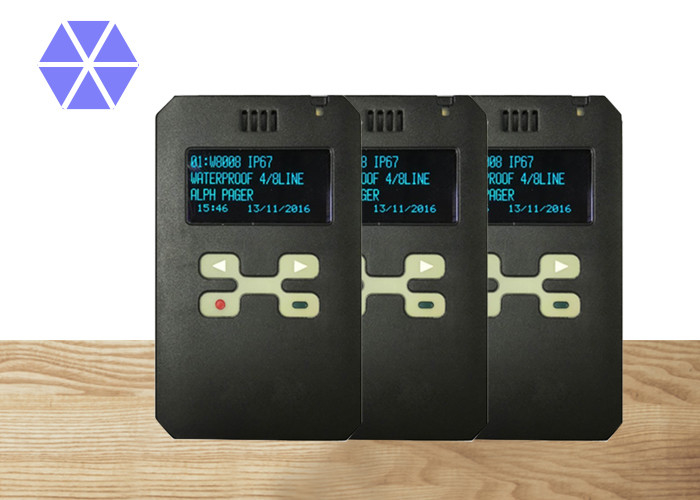

Restaurant Pager Calling System and vibrating pager with RFID
| Frequency Range | 138-174, 278-284, 405-480, 928-932MHz Bands |
| Channel Spacing | 25KHz/12.5KHz |
| Signal Format | POCSAG |
| Data Transmission Rate | 512bps or 1200bps or 2400bps |
| Modulation System | Carrier frequency shift keying (NRZ) |
| Frequency Deviation | ±4.5KHz |
| Receiving Sensitivity |
512bps 5uV/m, 1200bps 7uV/m,
2400bps 10uV/m
|
| Selectivity | 60dB ±25KHz |
| Image rejection | >50dB (138—480MHz); >40dB (928—932MHz) |
| Spurious Rejection | >60dB (138—284MHz); >50dB (405—932MHz) |
| Frequency Stability | ±5ppm(138-284 MHz), ±5ppm(406-480 MHz), ±5ppm(928-932MHz) |
| Tone Alert Output | More than 75dB(SPL) 10cm, frequency 2731Hz |
| Operating Voltage | 3.6V Lithium battery |
| Operating Temp. Humidity | -10º C to 50º C, 95% (at 40º C) |
| Storing Temp. Humidity | -10º C to 70º C, 95% (at 40º C) |
|
FEATURES
|
|
| Function |
IP 67 rate, washable
Anti-bacterial plastic case use for hospital environment
Thinnest Pocsag Pager over world
OLED display make the message in any environment.
Multi charger is available
RFID for door entry (Philips Mifare S50)
|
| Message storage Capacity | 19 Personal messages, 16 Mail drop messages, each 512 ASCII. |
| Address Code | 8 paging addresses , last 4 addresses can be programmed personal or maildrop |
| Display Format | 20 chars. x 4 line, or 20 chars. X 8 line |
| Time/Date Display | Real time with date displayed in 24 or 12 hours format |
| In Range Indication | If pager is within range of reception, " " will not be displayed |
| Low Voltage Alert | Display will show " " indicating low voltage |
| Message Received Time | Message receiving time is memorized and displayed together |
| Message protection | 16 messages |
| Message Deletion | Self messages can be deleted individually; self messages and mail drop can be deleted all. |
| Unread message | Red LED blink and display ICON flashing to remind unread message and audible alert (optional) |
| Duplicate Message | Duplicate message indication provided |
| Melody Alert | 8 different melody alerts, continuous audible alert (selected by programming software) |
| Alert Time | Can be programmed |
| Vibration Alert | Build-in vibrator will be activated automatically to indicate receptions of calls |
| Silent Alert | Pager can receive message without vibration, tone alert |
| Alarm | Built-in alarm function at preset time |
| Language | English, Spanish, French, German, Portuguese, Swedish |
| Battery |
One 3.6V/500mA/Hour rechargeable Lithium battery
|
| Battery Life | 5 days with fully charge |
| Battery Back-up | Over 30 seconds (when the battery is replaced) |
| Weight | 50 gms. (including battery) |
| Size | 90.2x54.0x8.6mm |
