Product Details:
Payment & Shipping Terms:
|
| High Light: | pager call system,cellular pager |
||
|---|---|---|---|

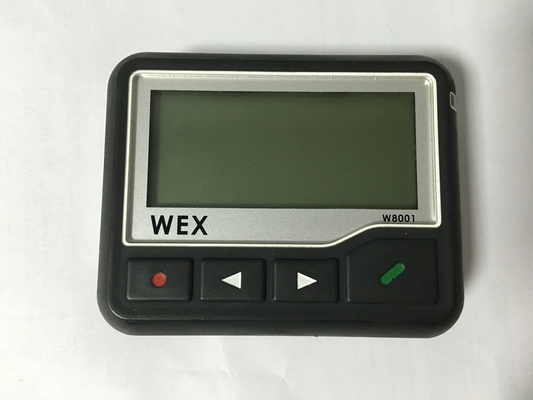

Wireless modern day pager
| Frequency Range | 138-174, 278-284, 405-480, 928-932MHz Bands |
| Channel Spacing | 25KHz |
| Signal Format | POCSAG |
| Data Transmission Rate | 512bps or 1200bps or 2400bps |
| Modulation System | Carrier frequency shift keying (NRZ) |
| Frequency Deviation | ±4.5KHz |
| Receiving Sensitivity | 512bps 5uV/m, 1200bps 7uV/m, 2400bps 10uV/m |
| Selectivity | 60dB ±25KHz |
| Image rejection | ≧50dB (138—480MHz); ≧40dB (928—932MHz) |
| Spurious Rejection | ≧60dB (138—284MHz); ≧50dB (405—932MHz) |
| Frequency Stability | ±10ppm(138-284 MHz), ±5ppm(406-480 MHz), ±3ppm(928-932MHz) |
| Tone Alert Output | More than 75dB(SPL) 10cm, frequency 2731Hz |
| Operating Voltage | 1.0V (min) |
| Operating Temp. Humidity | -10℃ to 40℃, 95% (at 40℃) |
| Storing Temp. Humidity | -10℃ to 70℃, 95% (at 40℃) |
|
FEATURES
|
|
| Message storage Capacity |
19 Personal messages, 12 Mail drop messages, each 1400 ASCII,total 32Kbyes SRAM for memory storage.
|
| Address Code |
4 paging addresses ,1 addresses for Personal call, rest of 3 addresses can be programmed personal or maildrop
|
| Display Format |
4 lines-20characters per line, Bold-16 characters per line
8 lines-20characters per line
|
| Time/Date Display |
Real time with date displayed in 24 or 12 hours format
|
| In Range Indication | If pager is within range of reception, "  " will not be displayed |
| Low Voltage Alert | Display will show " " indicating low voltage |
| Backlight | Backlight can be turned on manually under dim environment |
| Message Received Time | Message receiving time is memorized and displayed together |
| Message protection | 16 messages |
| Message Deletion | Self messages can be deleted individually; self messages and mail drop can be deleted all. |
| Unread message |
ICON flashing to remind unread message and audible alert (optional)
|
| Duplicate Message | Duplicate message indication provided |
| Error Message | Error message indication provided |
| Melody Alert |
8 Musical Tones
|
| Alert Time | 12~16 seconds |
| Vibration Alert | Build-in vibrator will be activated automatically to indicate receptions of calls |
| Silent Alert | Pager can receive message without vibration, tone alert |
| Alarm | Built-in alarm function at preset time |
| Language | English, Farsi, Spanish, French, Italian, German, Portuguese, Danish. Swedish |
| Battery | One "AA" battery (1.5V) or Chargeable Battery (1.5V) |
| OTA Function | OTA function turns on/off self address and mail drop address |
| Battery Life | 512dps, 2000 Hours (Alkaline battery), 1200bps, 1600 Hours (Alkaline battery) |
| Battery Back-up | 15 seconds (when the battery is replaced) |
| Holster Clip | Removable type attached at the back of the pager |
| Weight | 135 gms. (including battery) |
| Size | 80x64x23mm |
