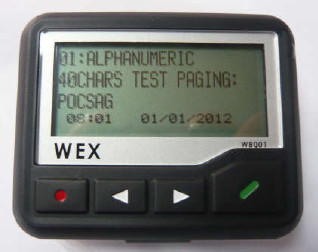

135 Gms Digital Pager , Electronic Pager 12 - 16 Seconds Alert Time

Large Image : 135 Gms Digital Pager , Electronic Pager 12 - 16 Seconds Alert Time

Product Details:

Place of Origin:	CHINA
Brand Name:	WEX
Certification:	CE,FCC,ROHS
Model Number:	W8001

Payment & Shipping Terms:

Price:	Negotiable

Contact Now

Detailed Product Description

Highlight:

waterproof pager

digital pager

W8001 (4 Line/8 Line IP67 Alphanumeric Pager)

Brief Detailed

Frequency Range	138-174, 278-284, 405-480, 928-932MHz Bands
Channel Spacing	25KHz
Signal Format	POCSAG
Data Transmission Rate	512bps or 1200bps or 2400bps
Modulation System	Carrier frequency shift keying (NRZ)
Frequency Deviation	±4.5KHz
Receiving Sensitivity	512bps 5uV/m, 1200bps 7uV/m, 2400bps 10uV/m
Selectivity	60dB ±25KHz
Image rejection	≧50dB (138—480MHz); ≧40dB (928—932MHz)
Spurious Rejection	≧60dB (138—284MHz); ≧50dB (405—932MHz)
Frequency Stability	±10ppm(138-284 MHz), ±5ppm(406-480 MHz), ±3ppm(928-932MHz)
Tone Alert Output	More than 75dB(SPL) 10cm, frequency 2731Hz
Operating Voltage	1.0V (min)
Operating Temp. Humidity	-10℃ to 40℃, 95% (at 40℃)
Storing Temp. Humidity	-10℃ to 70℃, 95% (at 40℃)

FEATURES
Message storage Capacity	19 Personal messages, 12 Mail drop messages, each 1400 ASCII,total 32Kbyes SRAM for memory storage.
Address Code	4 paging addresses ,1 addresses for Personal call, rest of 3 addresses can be programmed personal or maildrop
Display Format	4 lines-20characters per line, Bold-16 characters per line 8 lines-20characters per line
Time/Date Display	Real time with date displayed in 24 or 12 hours format
In Range Indication	If pager is within range of reception, " " will not be displayed
Low Voltage Alert	Display will show " " indicating low voltage
Backlight	Backlight can be turned on manually under dim environment
Message Received Time	Message receiving time is memorized and displayed together
Message protection	16 messages
Message Deletion	Self messages can be deleted individually; self messages and mail drop can be deleted all.
Unread message	ICON flashing to remind unread message and audible alert (optional)
Duplicate Message	Duplicate message indication provided
Error Message	Error message indication provided
Melody Alert	8 Musical Tones
Alert Time	12~16 seconds
Vibration Alert	Build-in vibrator will be activated automatically to indicate receptions of calls
Silent Alert	Pager can receive message without vibration, tone alert
Alarm	Built-in alarm function at preset time
Language	English, Farsi, Spanish, French, Italian, German, Portuguese, Danish. Swedish
Battery	One "AA" battery (1.5V) or Chargeable Battery (1.5V)
OTA Function	OTA function turns on/off self address and mail drop address
Battery Life	512dps, 2000 Hours (Alkaline battery), 1200bps, 1600 Hours (Alkaline battery)
Battery Back-up	15 seconds (when the battery is replaced)
Holster Clip	Removable type attached at the back of the pager
Weight	135 gms. (including battery)
Size	80x64x23mm
