Product Details:
Payment & Shipping Terms:
|
| Name: | Mobile Pager Device | Channel Spacing: | 25KHz |
|---|---|---|---|
| Signal Format: | POCSAG | Operating Voltage: | 1.0V (min) |
| Selectivity: | 60dB ±25KHz | Operated: | Battery Operated |
| Highlight: | electronic pager,digital pager |
||

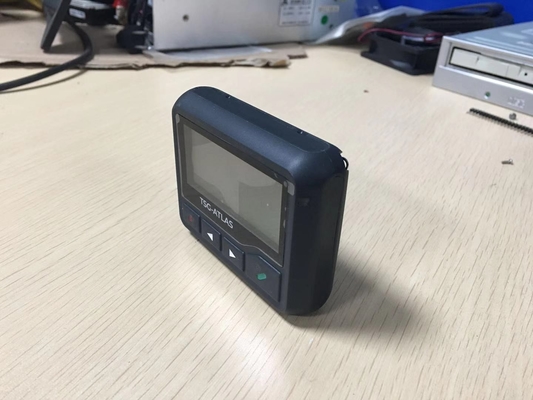

Battery Operated Mobile Pager Device 512bps 5uV/M, 1200bps 7uV/M, 2400bps 10uV/M
| Message storage Capacity | 50 Personal messages, 16 Mail drop messages, each 256 ASCII. |
| Address Code | 8 paging addresses , last 4 addresses can be programmed personal or maildrop |
| Display Format | 22 chars. x 8 lines, or 22chars x4lines,or 15X4 lines bold font .user selectable |
| Time/Date Display | Real time with date displayed in 24 or 12 hours format |
W8000 (4 Line/2 Line Alphanumeric Pager) Waterproof – IP67 SPECIFICATIONS Version 1.0
| Frequency Range | 138-174, 278-284, 405-480, 928-932MHz Bands |
| Channel Spacing | 25KHz |
| Signal Format | POCSAG |
| Data Transmission Rate | 512bps or 1200bps or 2400bps |
| Modulation System | Carrier frequency shift keying (NRZ) |
| Frequency Deviation | ±4.5KHz |
| Receiving Sensitivity | 512bps 5uV/m, 1200bps 7uV/m, 2400bps 10uV/m |
| Selectivity | 60dB ±25KHz |
| Image rejection | ≧50dB (138—480MHz); ≧40dB (928—932MHz) |
| Spurious Rejection | ≧60dB (138—284MHz); ≧50dB (405—932MHz) |
| Frequency Stability | ±10ppm(138-284 MHz), ±5ppm(406-480 MHz), ±3ppm(928-932MHz) |
| Tone Alert Output | More than 75dB(SPL) 10cm, frequency 2731Hz |
| Operating Voltage | 1.0V (min) |
| Operating Temp. Humidity | -10℃ to 40℃, 95% (at 40℃) |
| Storing Temp. Humidity | -10℃ to 70℃, 95% (at 40℃) |
| FEATURES | |
| In Range Indication | If pager is within range of reception, "  " will not be displayed |
| Low Voltage Alert | Display will show " " indicating low voltage |
| Backlight | Backlight can be turned on manually under dim environment |
| Message Received Time | Message receiving time is memorized and displayed together |
| Message protection | 16 messages |
| Message Deletion | Self messages can be deleted individually; self messages and mail drop can be deleted all. |
| Unread message | ICON flashing to remind unread message and audible alert (optional) |
| Duplicate Message | Duplicate message indication provided |
| Error Message | Error message indication provided |
| Melody Alert | 8 different melody alerts, continuous audible alert (selected by programming software) |
| Alert Time | Can be programmed |
| Vibration Alert | Build-in vibrator will be activated automatically to indicate receptions of calls |
| Silent Alert | Pager can receive message without vibration, tone alert |
| Alarm | Built-in alarm function at preset time |
| Language | English, Spanish, French, Italian, German, Portuguese, Danish. Swedish |
| Battery |
One "AA" battery (1.5V) Model with AA Re-chargeable Battery version is also available. Charger provided. |
| Battery Life | 512dps, 950 Hours (Alkaline battery), 1200bps, 800 Hours (Alkaline battery) |
| Battery Back-up | Over 30 seconds (when the battery is replaced) |
| Weight | 105 gms. (including battery) |
| Size | 84x59x22.5mm (without holster) |
