Product Details:
Payment & Shipping Terms:
|
| Name: | Wireless Paging System | Channel Spacing: | 25KHz |
|---|---|---|---|
| Signal Format: | POCSAG | Application: | Customer |
| Modulation System: | Carrier Frequency Shift Keying (NRZ) | Other Name: | Waiter Calling System Restaurant |
| Dimension: | 120*33*23mm | Battery: | Li-Polymer |
| High Light: | 25KHz Coaster Syscall Rechargeable Pager,2400bps Coaster Syscall Rechargeable Pager,10uV/m RechargeableMobile Pager |
||

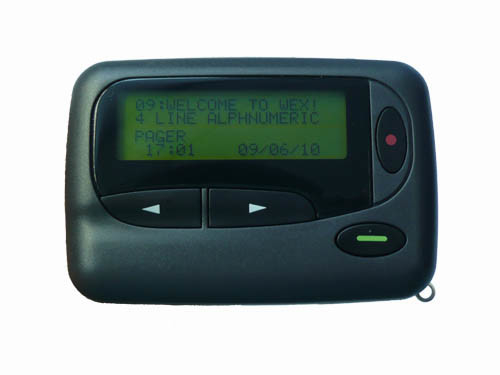

Wireless Self-Service Call System Restaurant Coaster Syscall Mini Rechargeable Pager
Wireless Paging System Introduction
An alphanumeric, feature-rich pager ideal for demanding business environments. The pager provides exciting capabilities. in messaging and can become a vital part of your daily business life. The pager’s four-line display. and expanded functionality incorporate many of the most advanced paging features available.
Wireless Paging System SPECIFICATIONS Version 1.0
| Frequency Range | 138-174, 278-284, 405-480, 928-932MHz Bands, crystal or synthesized version |
| Channel Spacing | 25KHz |
| Signal Format | POCSAG |
| Data Transmission Rate | 512bps or 1200bps or 2400bps |
| Modulation System | Carrier frequency shift keying (NRZ) |
| Frequency Deviation | ±4.5KHz |
| Receiving Sensitivity | 512bps 5uV/m, 1200bps 7uV/m, 2400bps 10uV/m |
| Selectivity | 60dB ±25KHz |
| Image rejection | ≧50dB (138—480MHz); ≧40dB (928—932MHz) |
| Spurious Rejection | ≧60dB (138—284MHz); ≧50dB (405—932MHz) |
| Frequency Stability | ±10ppm(138-284 MHz), ±5ppm(406-480 MHz), ±3ppm(928-932MHz) |
| Tone Alert Output | More than 75dB(SPL) 10cm, frequency 2731Hz |
| Operating Voltage | 1.0V (min) |
| Operating Temp. Humidity | -10℃ to 40℃, 95% (at 40℃) |
| Storing Temp. Humidity | -10℃ to 70℃, 95% (at 40℃) |
Product Description
| Name | Wireless Self-Service Call System Restaurant Coaster Syscall Mini Rechargeable Pager |
| Capacity | 3250mah/pcs |
| Weight | 130g/pcs |
| Dimension | 120*33*23mm |
| Battery | Li-Polymer |
| Color | Whtie/Black |
| Input | 5V/1A |
| Output | 5V/2.1A |
| Material | PC+ABS |
| Charger cable | Apply Lightning cable.Micro USB cable or Type-c |
| MOQ | 10 Pcs |
