Product Details:
Payment & Shipping Terms:
|
| Name: | Pager Electronic Device | Channel Spacing: | 25KHz |
|---|---|---|---|
| Signal Format: | POCSAG | Data Transmission Rate: | 1600bps Or 3200bps Or 6400bps |
| Spurious Rejection: | More Than 50dB | Aplication: | Hotel |
| High Light: | electronic pager,digital pager |
||

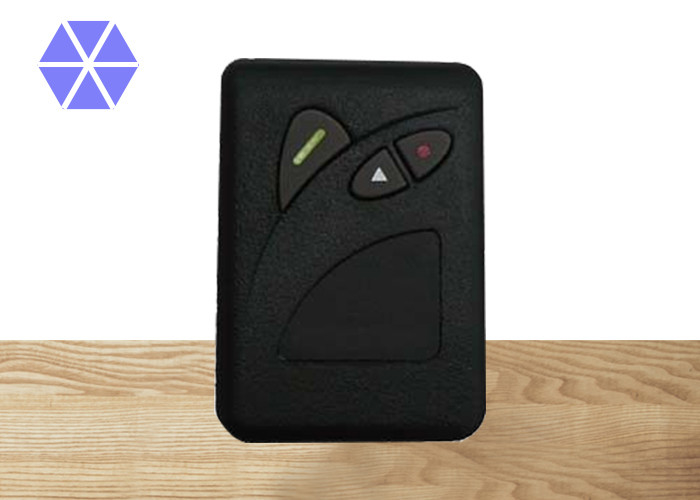

Hotel Pager Electronic Device , Uhf Pager Water Resistance 1600bps Or 3200bps
Pager Electronic Device SPECIFICATIONS Version 1.0
| Frequency Range | 138-174, 278-284, 405-480, 928-932MHz Bands |
| Channel Spacing | 25KHz |
| Signal Format | Pocsag |
| Data Transmission Rate | 1600bps or 3200bps or 6400bps |
| Modulation System | Carrier frequency shift keying (NRZ) |
| Frequency Deviation | ±4.5KHZ |
| Receiving Sensitivity | 512bps 5uV/m, 1200bps 7uV/m, 2400bps 10uV/m |
| Frequency Stability | ±10ppm (138-174 MHz),±5PPM (405-480 MHz), ±3PPM (928-932MHz) |
| Tone Alert Output | More than 75dB(SPL) 10cm, frequency 2731HZ |
| Operating Voltage | 0.9V (min) |
| Operating Temp. Humidity | -10°C to 40°C, 95% (at 40°C) |
| Storing Temp. Humidity | -10°C to 70°C, 95% (at 40°C) |
Pager Electronic Device FEATURES
| Message storage Capacity | 20 messages, 24 characters per message |
| Message full indication | Available |
| Address Code | 4 addresses |
| Display Format | 1 line of 12 characters (9 segment display) and one line of symbols |
| Time/Date Display | Real time with date displayed in 12/24 hours format |
| In Range Indication |
If pager is within range of reception, " ( can be disabled by capcode programming software.) |
| Power Consumption | Standby 0.3mA, receiving 6mA |
| Low Voltage Alert |
Display will show " (Audible alert is optional.) |
| Backlight | EL |
| Message Received Time | Message receiving time is memorized and will be displayed together |
| Message protection | 15 messages |
| Sequential Lockout | Optional |
| Do not Disturb | Pager received message without notification |
| Password protection | For PC capcode programming software and hand programming |
| Battery | One "AAA" battery (1.5V) |
| Battery Life | 950 Hours (Alkaline battery) |
| Battery Back-up | 15 seconds (when the battery is replaced) |
| Weight | 50g |
| Size | (L62.2 X W42 X H29.2)mm with bell clip |
