Product Details:
Payment & Shipping Terms:
|
| Name: | Pocsag Alphanumeric Pager | Channel Spacing: | 25KHz/12.5KHz |
|---|---|---|---|
| Signal Format: | POCSAG | Case: | Anti - Bacterial Plastic Case |
| Selectivity: | 60dB ±25KHz | Way: | 4 Way |
| Highlight: | restaurant pager system,numeric pager |
||

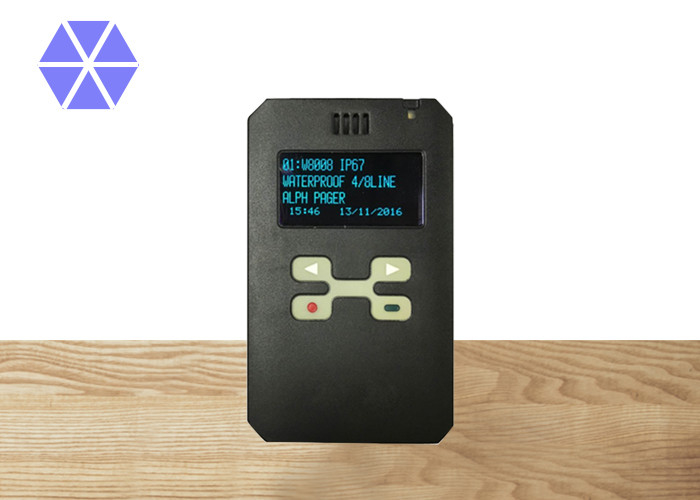

4 Way Pocsag Alphanumeric Pager With Anti - Bacterial Plastic Case
Pocsag Alphanumeric Pager Function
Waterproof
Anti-bacterial plastic case use for hospital environment
Thinnest Pocsag Pager over world
OLED display make the message in any environment.
Multi charger is available
Pocsag Alphanumeric Pager SPECIFICATIONS
| Frequency Range | 138-174, 278-284, 405-480, 928-932MHz Bands |
| Channel Spacing | 25KHz/12.5KHz |
| Signal Format | POCSAG |
| Data Transmission Rate | 512bps or 1200bps or 2400bps |
| Modulation System | Carrier frequency shift keying (NRZ) |
| Frequency Deviation | ±4.5KHz |
| Receiving Sensitivity |
512bps 5uV/m, 1200bps 7uV/m, 2400bps 10uV/m |
| Selectivity | 60dB ±25KHz |
| Image rejection | >50dB (138—480MHz); >40dB (928—932MHz) |
| Spurious Rejection | >60dB (138—284MHz); >50dB (405—932MHz) |
| Frequency Stability | ±5ppm(138-284 MHz), ±5ppm(406-480 MHz), ±5ppm(928-932MHz) |
| Tone Alert Output | More than 75dB(SPL) 10cm, frequency 2731Hz |
| Operating Voltage | 3.6V Lithium battery |
| Operating Temp. Humidity | -10º C to 50º C, 95% (at 40º C) |
| Storing Temp. Humidity | -10º C to 70º C, 95% (at 40º C) |
Pocsag Alphanumeric Pager FEATURES
| Message storage Capacity | 19 Personal messages, 16 Mail drop messages, each 512 ASCII. |
| Address Code | 8 paging addresses , last 4 addresses can be programmed personal or maildrop |
| Display Format | 20 chars. x 4 line, or 20 chars. X 8 line |
| Time/Date Display | Real time with date displayed in 24 or 12 hours format |
| In Range Indication | If pager is within range of reception, "  " will not be displayed |
| Low Voltage Alert | Display will show " " indicating low voltage |
| Message Received Time | Message receiving time is memorized and displayed together |
| Message protection | 16 messages |
| Message Deletion | Self messages can be deleted individually; self messages and mail drop can be deleted all. |
| Unread message | Red LED blink and display ICON flashing to remind unread message and audible alert (optional) |
| Duplicate Message | Duplicate message indication provided |
| Melody Alert | 8 different melody alerts, continuous audible alert (selected by programming software) |
| Alert Time | Can be programmed |
| Vibration Alert | Build-in vibrator will be activated automatically to indicate receptions of calls |
| Silent Alert | Pager can receive message without vibration, tone alert |
| Alarm | Built-in alarm function at preset time |
| Language | English, Spanish, French, German, Portuguese, Swedish |
| Battery |
One 3.6V/500mA/Hour rechargeable Lithium battery
|
| Battery Life | 5 days with fully charge |
| Battery Back-up | Over 30 seconds (when the battery is replaced) |
| Weight | 50 gms. (including battery) |
| Size | 90.2x54.0x8.6mm |
