| COLOR: | BLACK, WHITE | ||
|---|---|---|---|
| Highlight: | restaurant server pagers,medical pager |
||

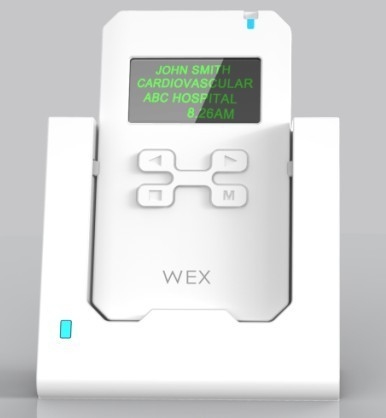

Charging operation and Description: plug the power adapter into AC power socket (as shown), Install the charging W8008 pager in the direction shown in the charging seat, Red LED indicator light at the upper right corner is on , Suggesting it is charging. Normal charge is about 3 hours. When the power is full, the top right corner of the pager will turn on the green LED light, Chargingcompletes since then
Adapter technology specifications:
Input Characteristics:
| Rated input voltage | 100-240Vac |
| Operating range | 90-264Vac |
| Rated input frequency | 50-60Hz |
| Rated input current | 0.3A Max. |
|
Power consumption (no loading) Power consumption (no loading)
|
0.3W Max.(Input voltage 115V and 230V) Under the 115V and 230V input voltage conditions, 0.3W ,Max |
| Primary current protection |
An adequate internal fuse on the AC input line is provideed.
|
| Configuration | Conductor power |
Output Characteristics:
| 2.2.1 |
Nominal dc output voltage
|
5.0V |
|
Minimum load current
|
0.01A | |
| 2.2.3 |
Rating load current
|
1.0A |
|
Rating output power
|
5.0W | |
| 2.2.5 |
Line regulation
|
The line regulation is less than ±5% while measuring at rated load and +/-10% of input voltage changing.
|
|
Load regulation
|
The load regulation for +5.0V is less than ±5%, at measured output load from 10% to 100% rated load .
|
|
| 2.2.7 |
No load voltage range
|
4.75~5.30V |
| 2.2.8 |
Ripple and noise
|
100mVp-p |
|
Full load Ripple and noise 100mVp-pmax. Measurement is done by 20MHZ bandwidth oscilloscope and the output Paralleled a 0.1μF ceramic capacitor and a 10μF electrolysis capacitor.(test under the Condition of rated input and rated output) |
||
| 2.2.9 |
Average efficiency
|
Accord with energy level V. Average efficiency68.17% minimum
|
|
|
115V/60Hz and 230V/50Hz, output current from 100%, 75%, 50%, 25%.
|
